Clean Room Monitor(AI-CRM3-1)

The Clean Room Monitor is designed to measure the vital parameters of temperature, Humidity & differential pressure in clean room application. The Model AI-CRM3_1 is designed for minimum cabling & easy flush mounting in Modular wall or brick walls of clean rooms. The sensor for humidity & temperature is externally provided so that the sensor can be mounted in the operation theatre & the display can be outside the operation theatre. The differential pressure sensor is built inside the clean room monitor with 2 Nos. Hose Nipples for room & corridor connection.

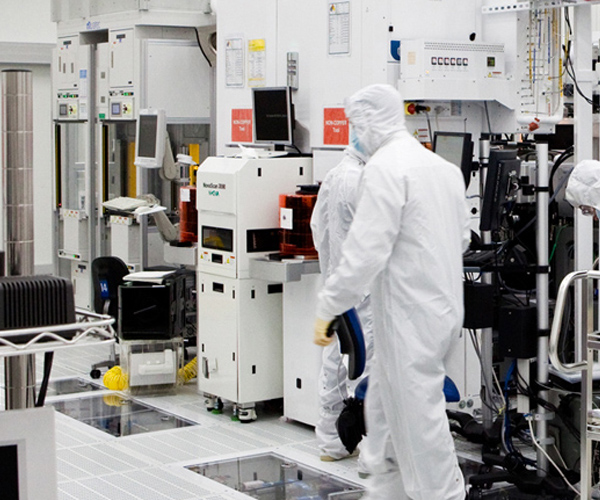

The instruments find immense use in Pharma Clean Room, Hospitals, Operation Theatres, APIs, Bulk Drugs, Electronic Hardware manufacturing plants, test plants, green houses, etc. Easy integration to building management system (BMS) with the RS 485 Modbus RTU Protocol communication allow set up & great control.

The display of the AI-CRM3-1 is a large 1” High super bright display with integrated buzzer alarm for process limit violation alert for all the 3 parameters of temperature, humidity & differential pressure. The display LEDs also show the alarm status for easy identification & follow-up remedial action

Note: For more detailed specifications, please download the additonal documents
